1,000 HP Drilling Rig

1,000 HP Drilling Rig

DRAWWORKS:
NATIONAL 50CA Single Drum Draw works, 1,000 HP, Lebus Grooved for 1-1/8" line, FOSTER Makeup & Breakout Catheads
COMPOUND:
2-Engine In-Line Compound w/QUINCY 390 Air Compressor .
DRAWWORKS POWER:
CATERPILLAR D-353 Diesel Engine, 485 Hp w/Air start, Radiator, Gauges,
NATIONAL C-245-80 Torque Converter.
CATERPILLAR D-353 Diesel Engine, 485 Hp w/Air Start, Radiator, Gauges,
NATIONAL C-245-80 Torque Converter.
BRAKE:
PARKERSBURG 342 Double Hydromatic Brake .

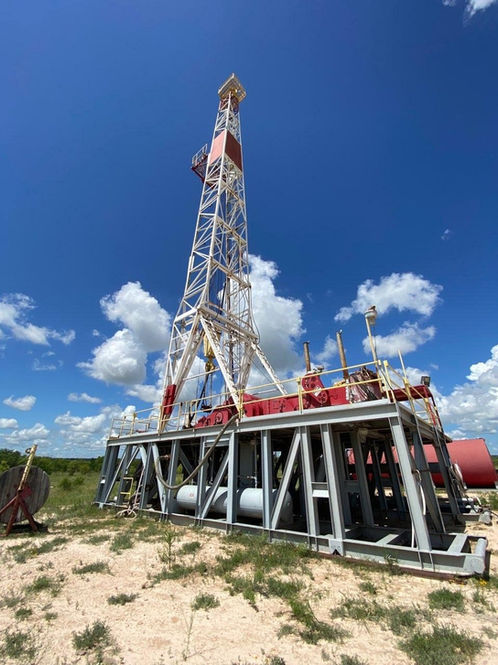

MAST
LEE C. MOORE 131' H Cantilever Mast, 440,000 Lb Static Hook Load, Crown Block w/ (4) 36" Cluster, 54" Fastline Sheave, Racking Board, Tong Counter Weights, Ladder, Derrick Climber, Geronimo, 4" Standpipe and Manifold
SUBSTRUCTURE:
SHOPBUILT 26' 1" W x 16'H x 47'L Box-On-Box Substructure w/Rotary Beams, V-Door Ramp, Stairs, Safety Rails, Skidded.
PUMP: (Primary)
Two (2) BOMCO 3NB100C Triplex Mud Pumps
PUMP POWER:
Two (2) CATERPILLAR D-398 Diesel Engines w/Air Start, Radiator, Gauges, Mounted Pump Master Skids.
ROTATING EQUIPMENT:
EMSCO 20-½" Rotary Table w/Split Master Bushings
SL-225 250 Ton Swivel   5-¼" Kelly
MUD SYSTEM:
SHOPBUILT l0'W x 5' l0"H x 39'8"L, 400 Bbl Pre-Mix Tank
SHOPBUILT l0'W x 5'10"H x 30'L, 300 Bbl Suction Tank Mud Agitators SHOPBUILT l0'W x WATER TANKS:(1) SHOPBUILT 500 Bbl Tanks(2) Water Pump
FUEL TANKS:
SHOPBUILT 8,000 Gallon Tank
OIL LUBESTER:
SHOPBUILT 5 Department
TRAVELING EQUIPMENT:
YG225 250 Ton Block/Hook Combination

GENERATORS HOUSE:
(1) 3406 C-CAT Engines with 325 KW Generators 30HP Sullivan-Palatek rotary screw compressor
Electrical Control Panel as is
SHOPBUILT 7'W x 42"H x 51L Catwalk, 2-SectionSHOPBUILT 10' W x 32'L Doghouse
Mud House, Skidded
