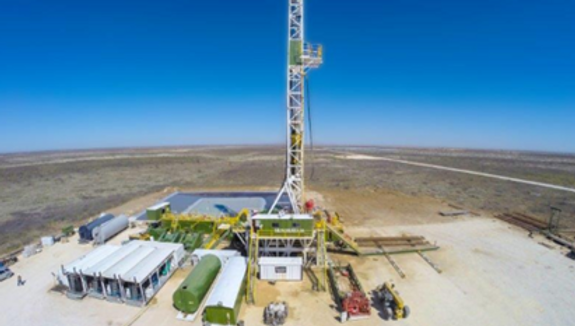

1,500 HP Drilling Rig

1,500 HP Drilling Rig

1,500 HP Drilling Rig

​

​

Location:

USA

Rig 14 – 1,500 HP

Working Depth:

  • 20,000 ft

Drawworks:

  • OIME SD-7, 1500 HP, 1 3/8 Drill      Line, El Magco 6032 Brake

Power:

  • 2 GE 752 Series type traction      motor

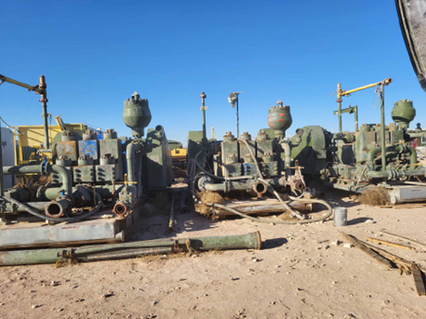

Pump #1:

  • RSF 1600 (Triplex 1600 HP) 7500      PSI

  • Powered by: 2ea. GE 752 type      Traction Motor

Pump #2:

  • RSF 1600 (Triplex 1600 HP) 7500      PSI

  • Powered by: 2 ea. GE 752 Traction      Motor

Pump #3:

  • Pump 3: RSF 1600 (Triplex 1600      HP) 7500 PSI

  • Powered By: (1) Caterpillar 3512      Engine (1475hp) w/40HP Electric Motor f/charger

Mast:

  • DSI 136' x 21' rated at 750,000#      static hook load

Substructure:

  • DSI 20' substructure Box on Box,      rotary capacity at 550,000#, 300,000 set back KB 20.5'

Traveling Equipment:

  • Block: 500 Ton NOV 1 3/8” Drill      Line

  • Top Drive: AC NOV TDS11 500 Ton

  • Swivel:

Rotary Table:

  • National C-275, 27 1/2"

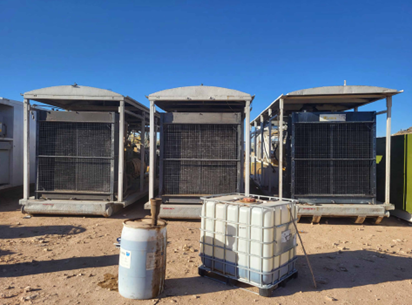

Generators:

  • SCR House: GCI 3 Generator x 4      SCR system

  • 9'W x 35'L x9'H House

  • Powered by: 3 Caterpillar 3512C      Engines W/ Kato 1365 KW 1950 KVA Generators

BOP Equipment:

  • Ram Preventor: 13 5/8 Double      5000#: LWS Type

  • Annular Preventor: 13 5/8 5000#:      Shaffer Type

  • Closing Unit: Koomey Type: 5      Station

Drill Pipe:

  • 650 Joints Range 2, 5" S-135      Drill Pipe

Drill Collars:

  • (24) 6-1/4"O.D. x      2-1/4"I.D. x 30' Long - Nominal-6ea. 8" Collars

Mud System:

  • Working Pits: 2 working pits:      8'6"H x 10'W x47' L (1100 bbl)

  • Mud mixing pump: (2) 6X5      Centrifugal pump with (2) 75 HP electric motors

Solids Control Equipment:

  • Shale Shaker: (3) Derrick style      linear shakers

  • Desilter: Derrick 10 cone      desilter

  • Desander: Derrick 2 cone desander

  • Mud Movers: (2) 6 X 5 Centrifugal      Pumps with 60 HP Electric Motors

  • Separator:

Auxiliary Equipment:

  • Water tank: 2 ea. 500 bbl

  • Fuel tank: 10,000 gallon capacity

  • Air Compressors: (1) Cold Start      piston type, 2- screw type electric compressors

  • Wireline Unit: Shop Built

  • Choke Manifold: Horn Equiment      5000#

  • Crew Quarters: Amerimex

  • Rig Managers Quarters: Amerimex

  • Stealthwalker Walking System w/      HPU and all plumbing

  • Festune Package w/Flow line, Low      and High pressure lines

  • NOV ST 80 Torque Wrench

Miscellaenous Equipment:

  • Centrifugal Pumps

  • Equipment Air Hoist

  • Tongs, slips, elevators

  • Pipe Racks

  • Automated Power Catwalk 3000

  • Handling subs

  • Spare parts & Hoses

  • Electrical Suitcases
